Street Furniture
Information Timetable Cases
DRU Double Royal Unit

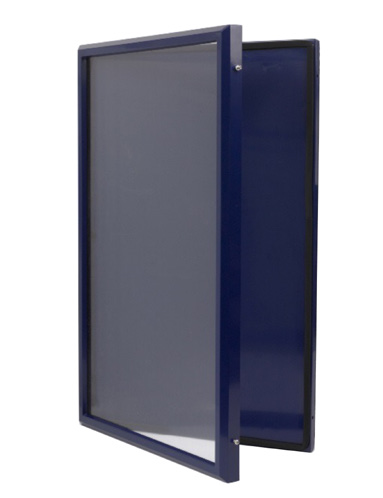

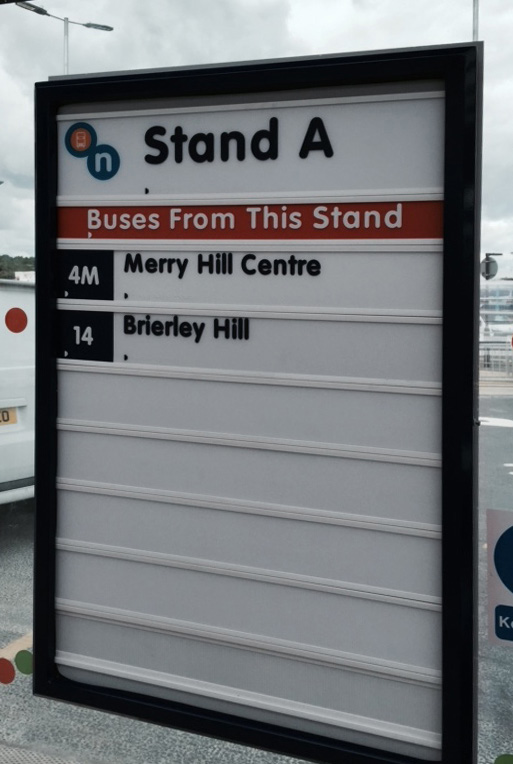

A premium-quality poster and timetable display case designed for both internal and external use, offering durability and a professional finish.
General Specification:
- Internal or external use poster case
- Fully welded and dressed corners
- Frame 42mm wide x 50mm deep
- Vandal and weather resistant
- Lockable front door with security screws
- Full length security hinged door
- 2mm clear high impact panel
- All aluminium construction
- Heavy duty solid back with correx insert
- Fully powder coated
- Fully recyclable materials
-
Technical Specification
Standard DRU size is:
- Display – 1016mm x 635mm
- Overall – 1100mm x 719mm
Bespoke sizes are also available – please contact for a quote.
Registered Design Security Hinged Section – Design No. 2097746
This innovative full-length aluminium security hinge features a registered design (No. 2097746) and consists of a longitudinal male and female interlocking two-piece system. Manufactured from 2.5mm profile-grade aluminium 6063T6, it offers exceptional strength and alignment accuracy.
The main frame is also a registered design, fabricated from 42mm x 3mm grade 6063T6 aluminium to BS EN 755 standards. All corners are TIG welded and dressed before the frame is powder coated to a 100-micron finish, ensuring structural integrity, durability, and a premium appearance.
Locks
Security allen keys, zinc dipped with 6mm hole to fit s/steel security screws with thread length of 16mm
Clear Display Panel
2mm thick PET polyethylene. Weather resistant, shock resistant and environmentally friendly, UV stable fire rating class 1Y or German DIN4102B1.
