Street Furniture

Information Cases

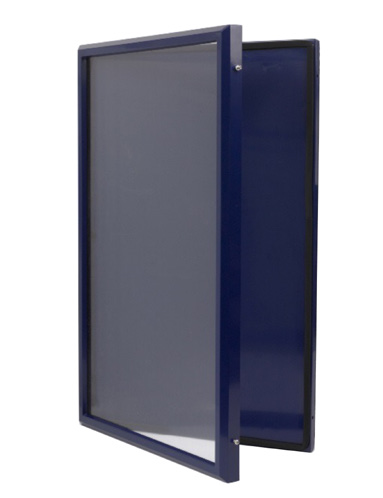

DRU Double Royal Unit

A superior quality poster case suitable for internal and external use.

General Specification:

  • Internal or external use poster case
  • Fully welded and dressed corners
  • Frame 42mm wide x 50mm deep
  • Vandal and weather resistant
  • Lockable front door with security screws
  • Full length security hinged door
  • 2mm clear high impact panel
  • All aluminium construction
  • Heavy duty solid back with correx insert
  • Fully powder coated
  • Fully recyclable materials
  • Technical Specification

    • Display – 1016mm x 635mm
    • Overall – 1100mm x 719mm

    Profile/ Hinge Section

    Registered Design Hinged Section – design NO2097746 is a combined full-length aluminium hinge consisting of a longitude male and female interlocking two-piece system 2.5mm profile grade aluminium 6063T6. The main frame is a registered design 42mm x 3mm grade 6063T6 BSEN77 aluminium. All corners are Tig welded and dressed to 100-micron finish.

    Locks

    Security allen keys, zinc dipped with 6mm hole to fit s/steel security screws with thread length of 16mm

    Clear Display Panel

    2mm thick PET polyethylene – terepmhthalate. Weather resistant, shock resistant and environmentally friendly, UV stable fire rating class 1Y or German DIN4102B1.
