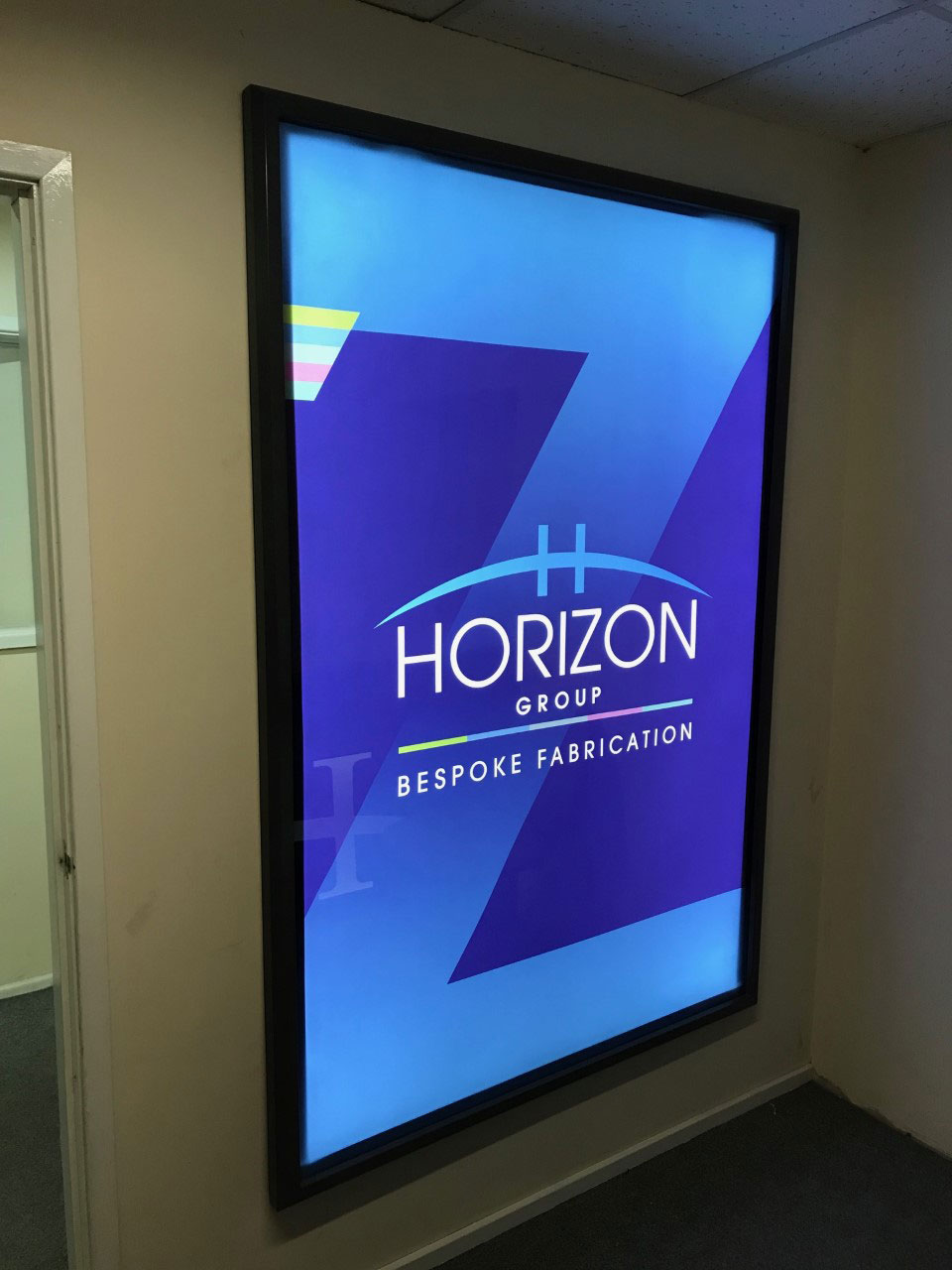

LED Module Light Box | Horizon Group - Bespoke Fabrication

A superior quality edge lit poster case that utilises cost effective LED Modules that ensure excellent illumination.

  • Internal or external use illuminated poster case
  • Fully welded and dressed corners
  • Frame 42mm wide x 50mm deep
  • Vandal and weather resistant
  • Lockable front door with quick access security allen key
  • Full length security hinged door
  • 2mm clear high impact panel
  • All aluminium construction
  • Fully powder coated, Silver or White as standard
  • Other colours available
  • Fully recyclable materials

Product Description

This case uses PosterBOX™ Slim

PosterBOX™ Slim delivers side illumination for shallow or narrow cases

PosterBOX™ Slim washes light across single-sided and double-sided displays using FanFlare™ lens technology that optimizes the light inside the box. The result is uniform light without the stripes associated with fluorescent tubes. The narrow silhouette of the side mounted modules makes PosterBOX Slim an excellent option for single-sided sign cabinets as shallow as 2  inches and double-sided cabinets as shallow as 4 inches. Stretch spacing is also built in, giving additional flexibility during installation, particularly in creative applications.

  • Excellent white light intensity and uniformity
  • Optimal for box signs as shallow as 2  inches
  • Indoor textile prints
  • Movie posters
  • Cabinets using FlexFace®

PosterBOX™ Slim is licensed under: Patents CN200680037992.9, DE202006020673.6, NL1030161, US6932495, and US7841733; and patent applications EP06812715.8 and NL2000273 and only available in the UK via our supplier, SloanLED.

Standard Posters Cases are:

  • Portrait
  • Side hinged on the left
  • Wall mounted
  • Powder coated silver

 Options available are:

  • Landscape
  • Side hinged on the right
  • Top hinged with support stays

Additional Information

Code

Display Size (Overall Size)

A4

297 x 210 (377 x 286)

A3

420 x 297 (500 x 377)

A2

594 x 420 (674 x 500)

A1

841 x 594 (921 x 674)

D/ROYAL

1016 x 635 (1096 x 715)

A0

1189 x 841 (1269 x 921)

3020

762 x 508 (842 x 588)

4030

1016 x 762 (1096 x 842)

6040

1524 x 1016 (1604 x 1096)

906

900 x 600 (980 x 680)

1209

1200 x 900 (1280 x 980)

1210

1200 x 1000 (1280 x 1080)

1212

1200 x 1200 (1280 x 1280)

1512

1500 x 1200 (1580 x 1280)

6 SHEET

1750 x 1190 (1830 x 1270)

1812

1800 x 1200 (1880 x 1280)

Bespoke

Bespoke sizes available
