Solar Powered Illuminated Bus Stop Flag

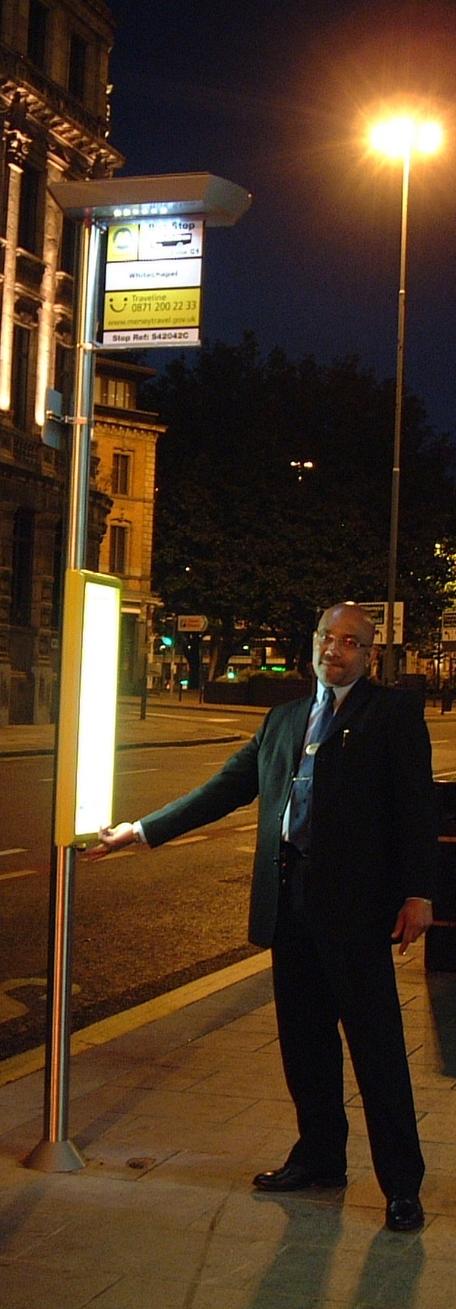

This innovative solar-powered bus stop flag provides effective illumination for public information while also enhancing stop visibility for drivers on poorly lit routes.
The Mercury Bus Stop Pole
The Mercury bus stop pole features a vandal-resistant 40W photovoltaic solar panel, securely mounted to a fabricated aluminium enclosure. The enclosure is fully water-resistant, includes a hinged top for easy maintenance access, and can be powder coated in any RAL colour to meet specific project requirements.
Inside the enclosure, the system houses:
2 x 12V 7.7Ah Gel Batteries
1 x Charge Controller
Optional Ambient Light Sensor (for adaptive lighting control based on environmental conditions)
The integrated LED lighting system consists of:
2 x LED strips (20mm x 95mm)
Each strip includes 3 high-power bright white LED diodes
Total power consumption: 0.6W
Lighting duration and activation times are fully programmable via the onboard controller, offering precise operation tailored to site needs. The system provides up to 11 hours of illumination per day, ideal for highlighting bus stops on dimly lit or rural routes.
-
Timetable Case
A 12 volt illumination is provided by a 270 x 720 6mm thick acrylic which has LEDs inserts down the length. Illumination is triggered by the user via a vandal proof push button situated in the bottom of the case. The time of the illumination is set at 20 seconds and this can be set to client’s demands as specified.
The timetable case is vandal and weather resistant and can be finished in any RAL colour.
-
Bus Stop Pole
The bus stop pole can be either Aluminium (standard), stainless steel, or our new anti- graffiti aluminium pole; all of which can be finished to client’s requirements.
An alternative is to use a galvanised steel pole with an anti-graffiti plastic sleeve, this method can be used to utilise existing bus stop poles. This will fit perfectly over a 60mm square spigot or an existing 76mm diameter pole and there is the possibility, upon consultation, that the system can be retro-fitted to your existing product. POA.
-
Bus Stop Flag
- The bus stop flag can be supplied to a recommended size of 600mm x300mm.
- The flag can be supplied completed and screen printed to a client’s specification.
-
Installation
- This unit is supplied ready to work and simply needs to be set in position.
